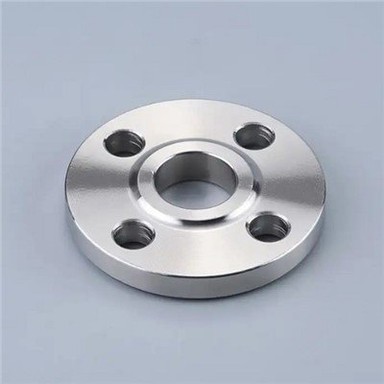

Stainless Steel 304 Flat Flange
Compared with the flange with neck, the plate flange can be divided into carbon steel plate flange, stainless steel plate flange and alloy steel plate flange according to the material. The structural form of flange includes integral flange and unit flange.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Stainless steel 304 flat flange has the advantages of uniform thickness and accurate size. It is mainly used for pipeline connection to prevent leakage of pipeline system. In addition to the stainless steel version, there are many types of flat flanges for you to choose from, such as carbon steel plate flange and alloy steel plate flange. It can show good corrosion resistance and low maintenance in application, so it can not only increase the tightness of the pipeline system, but also help you save costs. This flat flange is very easy to install, and its surface hole can be used for bolt tightening. In addition to this stainless steel 304 flat flange, we also produce flanges of other materials, and they all meet international standards. Welcome to buy!
Standard system for flat flange
1) Nominal pressure: 0.25mpa~42.0mpa
a. Series 1: pn1.0, pn1.6, pn2.0, pn5.0, pn10.0, pn15.0, pn25.0, pn42 (main series)
b. Series 2: pn0.25, pn0.6, pn2.5, pn4.0
The flange sizes of pn0.25, pn0.6, PN1.0, pn1.6, pn2.5 and pn4.0 belong to the European flange system represented by the German flange, and the rest belong to the American flange system represented by the American flange.
Flat Flanges Material
Carbon Steel Flat Flanges | ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105/ ASME SA105, A105N, ASTM A350 LF2/ ASME SA350, High Yield CS ASTM A694/ A694 (F52 F56 F60 F65 F70 F80) |
Stainless Steel Flat Flanges | ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409 |
Alloy Steel Flat Flanges | ASTM A182/ ASME SA182 F5, F9, F11, F12, F22, F91 |
Titanium Flat Flanges | ASTM B381/ ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 |
Copper Flat Flanges | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc |
Copper Nickel Flat Flanges | ASTM/ ASME SB 61/ 62/ 151/ 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |
Brass Flat Flanges | 3602/ 2604/ H59/ H62/ etc. |
Inconel Flat Flanges | ASTM B564/ ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 Flat Flanges |
Hastelloy Flat Flanges | ASTM B564/ ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges |
Monel Flat Flanges | ASTM B564/ ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
Alloy 20 Flat Flanges | ASTM B462/ ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3 |
Aluminium Flat Flanges | 5052 /6061/ 6063/ 2017/ 7075/ etc. |
Nickel Flat Flanges | ASTM B564/ ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC |
Duplex Flat Flanges | S31803/ S32205 A182 Gr F51/ F52/ F53/ F54/ F55/ F57/ F59/ F60/ F61 |
Super Duplex Flat Flanges | S32750/ S32760 A182 Gr F51/ F52/ F53/ F54/ F55/ F57/ F59/ F60/ F61 |
Incoloy Flat Flanges | ASTM B564/ ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges |
254 Smo Flat Flanges | ASTM A182/ ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547 |
Nimonic Flat Flanges | Nimonic 75, Nimonic 80A, Nimonic 90 |
Other Flat Flanges material | Tin bronze, Alumunum bronze, Lead bronze |
